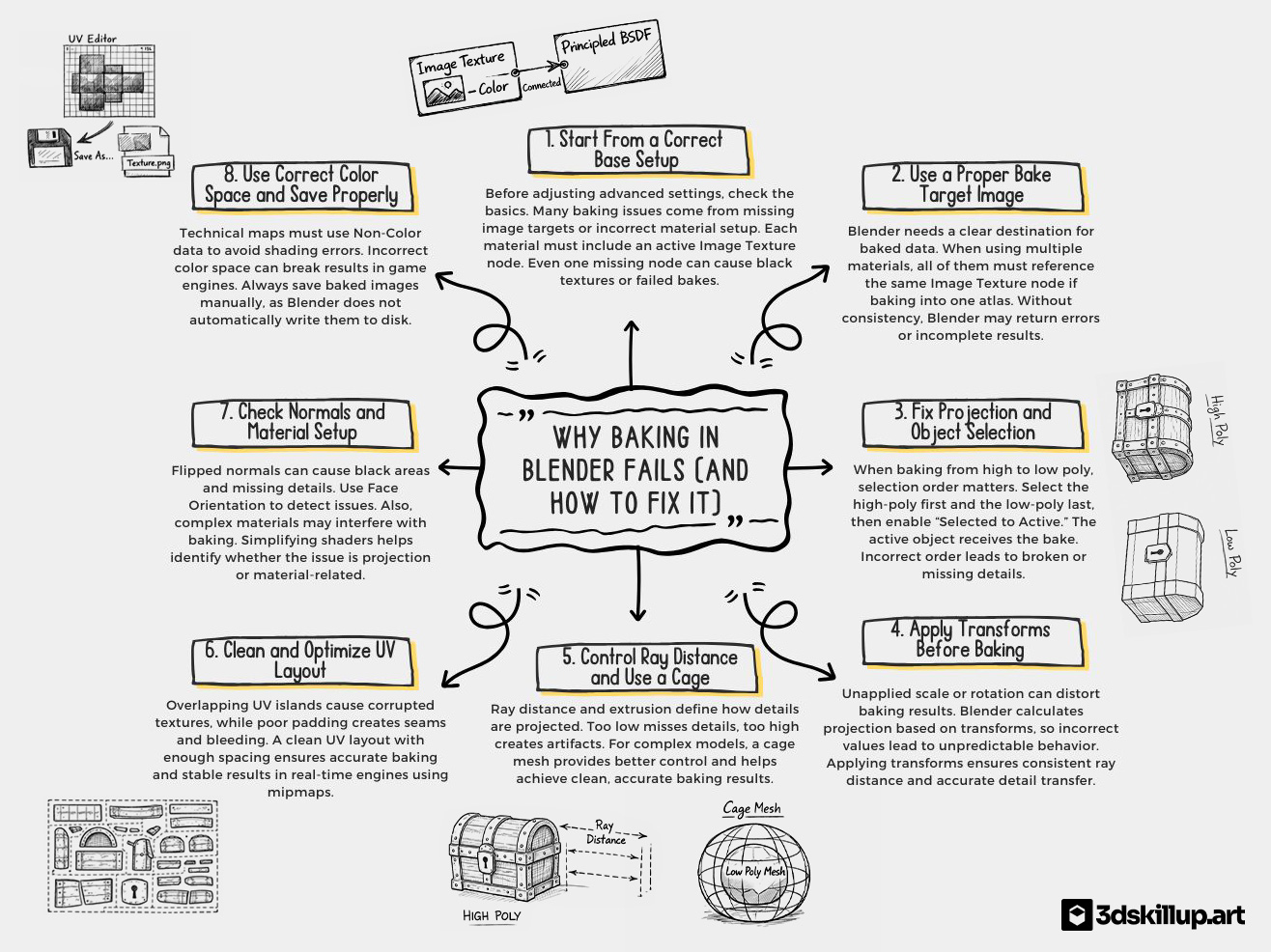

Why Baking in Blender Fails (And How to Fix It for Good)

Texture baking is one of the most useful steps in a real-time 3D workflow, but it is also one of the most frustrating when something goes wrong.

You prepare the high-poly model, unwrap the low-poly mesh, launch the bake, wait for the result… and the texture comes out black, incomplete, distorted, or full of strange artifacts. If you create game-ready assets, this is more than a minor annoyance. A failed bake slows production, lowers quality, and often forces you to repeat the same task several times.

The good news is that baking problems are rarely random. In most cases, they come from a small number of setup mistakes involving image targets, object selection, UVs, normals, projection settings, or color space.

In this guide, we will go through the most common reasons why baking fails in Blender and how to fix them with a practical workflow. The goal is simple: help you turn baking from an unreliable step into a predictable part of your asset pipeline.

Start With the Basics First

Before checking cages, ray distances, or mesh complexity, make sure the basic baking setup is correct.

A lot of errors happen because Blender is missing a valid target or because one material in the object is not configured properly.

Use the correct bake target

When baking to an image, Blender needs a clear destination for the generated texture data.

That means your material must contain an Image Texture node connected to the correct image, and that node must be the active node in the Shader Editor when you launch the bake.

If your object uses multiple materials, this becomes even more important. Every material involved in the bake should contain the correct target image node. If even one material slot is missing that setup, the bake may fail or return the classic error that no active image was found.

Keep all materials consistent

If your low-poly object uses several materials but you want to bake everything into one texture atlas, use the same target image in every relevant material.

This gives Blender a consistent destination and helps avoid confusing results during the baking process.

3DSkillUp tip:
If you are baking multiple materials into a single map, create the final image first and place the same Image Texture node in every material before starting the bake.

If the Bake Runs but the Result Looks Wrong, Check Projection

Sometimes the bake finishes without errors, but the final map still looks broken. You may see dark spots, missing information, incorrect shading, or details projected into the wrong place.

When that happens, the issue is usually related to projection.

Use Selected to Active correctly

If you are baking detail from a high-poly mesh onto a low-poly mesh, Blender needs to know which object is the source and which one is the target.

The correct workflow is:

1. Select the high-poly object or objects first
2. Select the low-poly object last
3. Enable Selected to Active in the Bake settings

The object selected last becomes the active object, which is the one that receives the baked texture.

If the order is wrong, the bake may fail entirely or produce a result that makes no sense.

Apply transforms before baking

Unapplied transforms are one of the most common causes of unpredictable baking behavior.

If the scale or rotation of your object is not properly applied, settings like extrusion and ray distance may not behave the way you expect. This makes it much harder to control projection cleanly.

Before baking, apply rotation and scale to the relevant objects. This simple step often removes a lot of unnecessary troubleshooting.

Ray Distance and Cage Settings Can Make or Break the Bake

Projection issues often come down to how Blender casts rays from the low-poly mesh toward the high-poly mesh.

If the distances are wrong, rays may miss important details or hit the wrong surface.

Understand extrusion and ray distance

Two baking settings matter a lot when projecting from high to low:

• Extrusion pushes the ray origin outward from the low-poly surface
• Max Ray Distance limits how far the rays can travel

If these values are too small, the bake may miss surface detail. If they are too large, Blender may capture information from the wrong area and create messy artifacts.

This is why baking often fails when artists use random values instead of matching the settings to the actual distance between the two meshes.

Use a cage for complex shapes

For simple objects, standard projection may be enough. But for more difficult forms, a cage gives you much more control.

A cage is especially useful when the model contains:

• overlapping forms
• tight gaps
• thin geometry
• layered parts
• recessed details

To create one, duplicate the low-poly mesh and expand it slightly along the normals so it surrounds the high-poly model cleanly. This expanded mesh then guides the projection.

A clean cage can solve problems that would otherwise be very difficult to fix using extrusion values alone.

UV Problems Often Cause Bake Artifacts

Even if the geometry is correct, the bake can still fail because of poor UVs.

A model can look perfect in 3D and still produce unusable textures if the UV layout is not clean.

Check for overlapping UV islands

If two UV islands overlap by mistake, Blender will write different texture information into the same area of the image.

That can lead to:

• corrupted details
• dark patches
• mixed information
• texture artifacts in random places

If the bake is meant to produce a clean unique texture map, the UVs should not overlap.

Leave enough padding between UV islands

Bake margin is critical for real-time assets.

Without enough padding around the UV islands, you may get visible seams, bleeding, or dark lines once the texture is viewed at a distance in a game engine.

This happens because lower mip levels blend neighboring pixels together. If your UV islands are packed too tightly, the colors around one island can bleed into another.

Efficient UV packing is important, but padding matters too. A tightly packed layout is not helpful if it creates visible artifacts in the final asset.

3DSkillUp tip:
Think beyond the bake itself. Always consider how the texture will behave inside Unity, Unreal Engine, or any real-time renderer that uses mipmaps.

Check Face Orientation and Normals

Flipped normals are another common source of baking problems.

If some faces point inward instead of outward, Blender may shade or project them incorrectly. This can cause black areas, missing details, or broken normal map results.

A fast way to inspect this is by enabling Face Orientation in the viewport.

As a general rule:

• blue faces are usually facing outward
• red faces are usually facing inward

If you find incorrect areas, recalculate the normals outward before baking.

This is a basic step, but it solves more issues than many artists expect.

Sometimes the Material Setup Is the Problem

Not every baking issue comes from the mesh or the UVs. Sometimes the source material is the real cause.

This is particularly relevant when baking maps like base color, emission, or other shader-driven outputs.

Simplify the source material when testing

If the result looks wrong and you cannot understand why, test the bake using a simpler version of the source material.

For example, isolate the main color information you want to capture and temporarily remove extra nodes that are not necessary for the test.

This can help you confirm whether the issue comes from projection or from the shader setup itself.

In some cases, the mesh is perfectly fine and the only real problem is that the material is too complex, inconsistent, or not set up correctly for the map you are trying to bake.

Use the Correct Color Space and File Format

A technically correct bake can still become unusable if it is saved with the wrong settings.

Use Non-Color for technical maps

Maps that contain data rather than visible color information should not be treated as standard color textures.

This includes:

• normal maps
• roughness maps
• metallic maps
• ambient occlusion maps
• height maps
• displacement maps

These types of textures should be handled as Non-Color data.

If they are treated as normal color images, their values may be altered in ways that cause incorrect shading or broken results once imported into a game engine.

Use enough bit depth when needed

Not every map needs the same precision.

For example, a base color map may work perfectly well with standard settings, while a displacement or height map may need much more precision to avoid banding or visible stepping.

If your texture stores subtle grayscale information that drives surface detail, using a higher bit depth can make a major difference in quality.

Save the Baked Image Properly

One of the most frustrating mistakes in Blender is completing a good bake and then losing the result because the image was never actually saved.

After the bake, Blender may display the texture correctly in memory, but that does not automatically mean it has been written to disk.

Always save the image manually

Once the bake is finished, go to the Image Editor and save the image file explicitly.

Do not assume that saving the .blend file is enough.

If needed, you can also pack the image into the Blender file, but for a professional workflow it is usually better to save baked textures clearly alongside the rest of the asset files.

A Reliable Baking Checklist

Before you launch a bake, go through this checklist:

• Render engine set correctly
• Target image created
• Active Image Texture node selected
• All material slots checked
• High-poly and low-poly objects selected in the correct order
• Selected to Active enabled when needed
• Rotation and scale applied
• UVs clean and non-overlapping
• Enough padding between islands
• Normals facing outward
• Ray distance tested properly
• Cage used for difficult shapes
• Technical maps set as Non-Color
• Final image saved manually

This takes only a few minutes, but it can save hours of repeated failed bakes.

Final Thoughts

Baking in Blender does not usually fail because the software is random or unreliable. Most of the time, the problem comes from one specific technical mistake in the setup.

The most common causes are:

• no valid image target
• incorrect object selection order
• unapplied transforms
• poor UV layout
• flipped normals
• bad projection settings
• wrong color space
• unsaved output

Once you start treating baking as a controlled workflow instead of a single button press, the whole process becomes much easier to manage.

For artists creating game-ready assets, this matters a lot. Clean baking leads to better textures, faster production, fewer marketplace issues, and more professional results across Unity, Unreal Engine, Blender, and other real-time pipelines.

Mastering this step will not only improve your assets. It will improve the efficiency and reliability of your entire 3D workflow.
