Game Asset Pipeline: How to Create an Optimized Game-Ready Asset

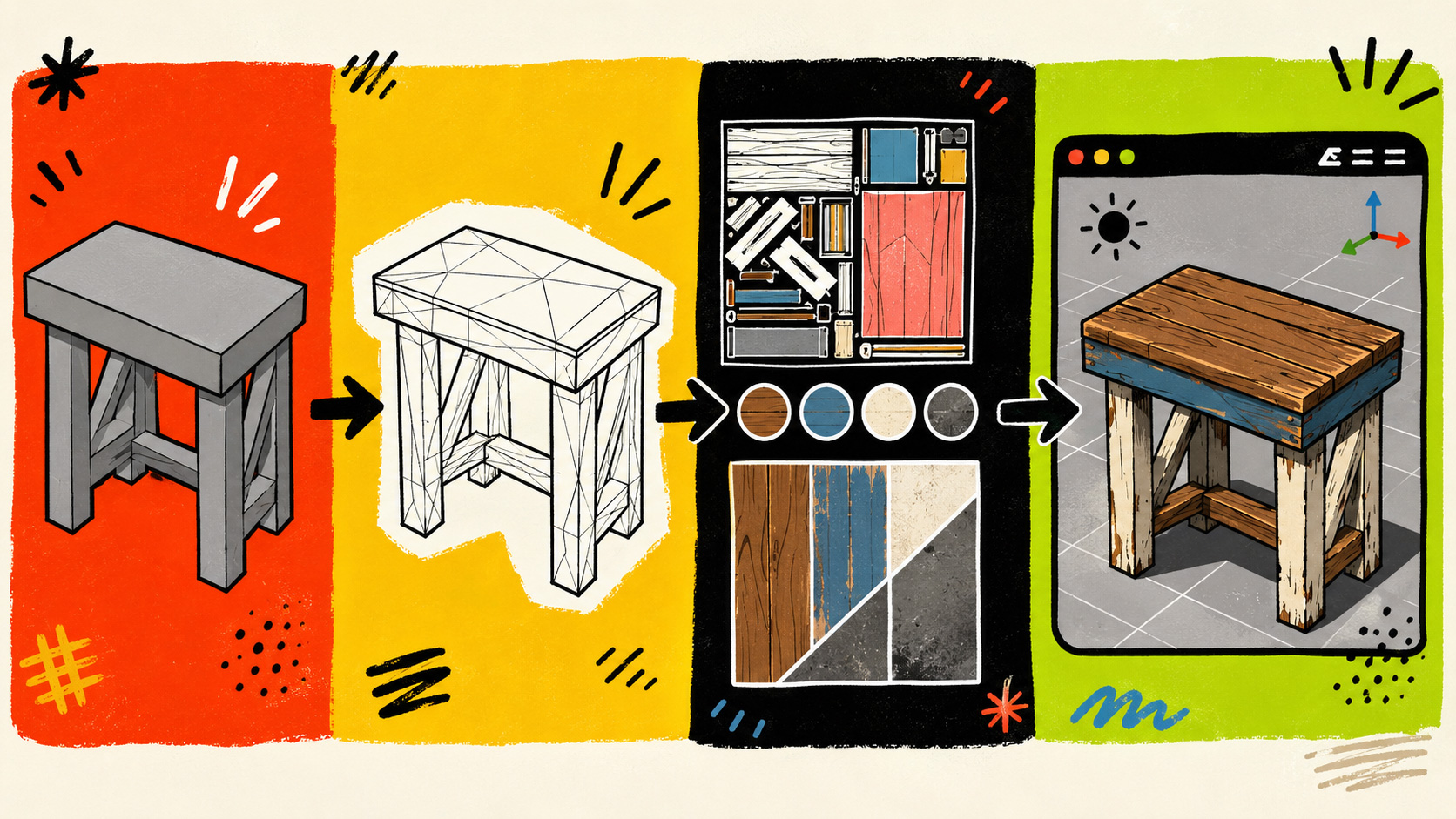

A complete game asset pipeline turns a 3D model into something that can be imported, rendered, tested, and used reliably inside a real-time project. Modeling is only one part of that process. A professional asset also needs efficient geometry, practical UVs, clean baking, believable PBR textures, correct scale, suitable collision, and predictable behavior in the target game engine.

This guide takes you through the complete workflow, from reference gathering and blockout to Blender modeling, Substance 3D Painter or Marmoset Toolbag baking, optimization, engine testing, and final delivery.

The focus is primarily on static props and environment assets, but most of the principles also apply to vehicles, modular pieces, equipment, and other real-time models. To make each decision concrete, we will use a worn workshop table as a recurring example.

The goal is not simply to finish an attractive model. It is to create an asset that looks convincing, uses resources responsibly, and does not force another artist or developer to repair it before use.

What Is a Game Asset Pipeline?

A game asset pipeline is the complete sequence of decisions and production stages used to transform an idea, concept, or reference into a functional real-time asset.

A typical pipeline includes planning, reference gathering, blockout, high-poly modeling where required, low-poly construction, UV unwrapping, baking, PBR texturing, optimization, export, engine integration, quality control, and final packaging.

These stages should not be treated as isolated tasks. A decision made during modeling affects the UV layout. The UV layout affects the bake. Baking influences texturing, while export settings and tangent handling can change how the final normal map appears in the engine.

For this reason, a reliable pipeline includes feedback loops. You may discover during baking that a low-poly surface needs better topology. An engine test may show that the texture resolution is excessive or that the silhouette needs one additional edge loop. Returning to an earlier stage is not a failure. It is part of production.

A model is not game-ready simply because it has a low triangle count or because it looks polished in a portfolio render. It must balance four qualities: visual clarity, technical efficiency, engine compatibility, and production usability.

If you want to examine those requirements independently, this guide explains how to know if a 3D model is really game-ready.

For the workshop table, a finished Blender render would not be enough. You would still need to confirm that its dimensions make sense, its underside is not unnecessarily dense, its materials work under real-time lighting, and its collision does not make gameplay more expensive or unpredictable.

How Should You Plan the Asset Before Modeling?

Optimization begins before you create detailed geometry. If you wait until the end, you may have to rebuild the mesh, reorganize materials, unwrap the asset again, or repeat the bake.

Start by defining how the asset will be used:

• Which engine and rendering pipeline will receive it?
• How close can the gameplay camera get?
• Is it a hero asset, an interactive object, or background decoration?
• Will it appear once or be instanced throughout an environment?
• Is it being created for one project or for a general marketplace audience?

These answers determine where you should spend geometry and texture memory.

A workshop table used as a central crafting station may need detailed drawers, rounded handles, readable surface damage, and a close-up texture set. A similar table placed behind a locked workshop window may require only a recognizable silhouette and a much simpler material.

Gather References With Different Purposes

Do not build your reference board from attractive images alone. Organize references according to the information they provide.

Shape references help you understand proportions and silhouette. Construction references show how panels, legs, drawers, brackets, screws, and joints connect. Material references show grain, oxidation, paint loss, scratches, dust, and roughness. Context references reveal how the object is used, damaged, repaired, or arranged within an environment.

When possible, find several angles. A single front-facing photograph may hide the depth of a drawer, the structure under a tabletop, or the way two materials meet.

Establish Real-World Scale

Create the initial blockout at a consistent scale. Compare it with a human reference, a doorway, a metric guide, or another object whose size is known.

Correct scale matters beyond visual proportion. It affects physics, collision, camera perception, texture density, lighting, and compatibility with other assets. A table that is technically well modeled but twice its expected size will create unnecessary setup work in the engine.

Define Budgets, Not Arbitrary Limits

You can establish provisional budgets for geometry, materials, texture sets, texture resolution, and LODs, but avoid treating them as universal rules.

The right polygon count depends on screen coverage, silhouette, platform, repetition, material complexity, and gameplay importance. A cylinder viewed closely needs enough radial segments to avoid visible faceting, while a large flat panel may need very little geometry.

For a deeper method based on actual asset usage, see how to choose the right polycount for game props.

Planning does not require predicting every final number. Its purpose is to prevent you from building an asset without knowing what it needs to accomplish.

From Blockout to Low Poly: Where Should the Detail Go?

The blockout is where you solve the largest and most expensive problems: proportions, scale, silhouette, major construction, and the relationship between parts.

Work with simple primitives and avoid small details. Evaluate the asset from the distances and angles that matter in the final project. A blockout should already communicate what the object is and how it occupies space.

For the workshop table, this means establishing the height, tabletop thickness, leg spacing, drawer dimensions, and overall mass before adding bolts, scratches, wood grain, or metal wear.

If the asset does not read clearly at this stage, additional detail will not fix its proportions.

Decide Whether You Need a High-Poly Model

Not every game asset requires a traditional high-poly-to-low-poly workflow.

A simple stylized prop may be modeled directly as the final mesh. A hard-surface asset with rounded edges, engravings, bolts, welds, or surface damage may benefit from a detailed high-poly version. A complex sculpted asset will usually require a separate retopology stage.

Choose the workflow according to the information you need to transfer. Do not create millions of polygons simply because high-poly modeling is considered part of a professional pipeline.

The high-poly model should define forms that improve the bake: edge softness, shallow recesses, seams, dents, engravings, and other surface transitions. Microscopic noise is often better created during texturing because it is easier to control and does not complicate the bake.

Build the Low-Poly Around Visible Value

The low-poly mesh should preserve the silhouette, major forms, important depth, and any part that moves or affects gameplay.

Use geometry for details that:

• Change the external silhouette.
• Create deep openings or visible parallax.
• Move independently.
• Cast important shadows.
• Must be represented by collision.

Use normal, height, roughness, or base color information for shallow details such as fine scratches, small stamped lettering, surface grain, minor dents, and subtle seams.

A screw positioned on the front of the table may work as a baked detail. A large handle that extends away from a drawer should normally be geometry because it affects silhouette, depth, shadow, and interaction.

Keep Static-Prop Topology Practical

Static assets do not require the same deformation topology as characters, but the mesh still needs to shade, unwrap, bake, and export reliably.

Remove duplicate faces, accidental internal surfaces, unsupported floating vertices, and subdivisions that do not change the result. Inspect large flat areas for unwanted gradients and curved sections for visible faceting.

Quads are useful while editing, but the final engine mesh will be triangulated. If a surface can triangulate in more than one visually significant way, control that triangulation before baking and keep it consistent through export. A different diagonal can change the shading and make the baked normal map appear incorrect.

Maintain clear names for high-poly and low-poly components. Names such as SM_Worktable_Drawer_Low and SM_Worktable_Drawer_High are more useful than Cube.018 when you need to isolate a bake error or update one part of the asset.

How Do You Create Efficient UVs for a Game Asset?

A strong UV layout gives important surfaces enough resolution while keeping the asset predictable to texture, bake, and render.

Begin by placing seams where they create the least visible disruption. Natural construction breaks, hard edges, hidden undersides, panel boundaries, and material transitions are often suitable locations.

Do not hide every seam at the cost of severe distortion. A clean seam is usually easier to manage than an island stretched across several incompatible directions.

Control Texel Density

Texel density describes how much texture resolution is assigned to a given amount of surface area. Comparable surfaces should normally receive comparable density unless a deliberate priority justifies a difference.

On the workshop table, the tabletop, drawer fronts, handles, and visible legs deserve more useful texture space than the underside. This does not mean shrinking hidden areas until they become unusable. It means distributing resolution according to what the player can actually see.

Use a checker texture to identify stretching, inconsistent scale, accidental mirroring, and badly oriented islands before baking.

Leave Enough Padding

UV islands require space between them because textures are filtered and mipmapped at runtime. Insufficient padding can cause colors or normal information from one island to bleed into another when the texture is viewed at a lower mip level.

The padding required depends on the texture resolution, export workflow, and target engine. Test the final texture rather than judging only the full-resolution image in the UV editor.

Use Overlapping UVs Intentionally

Mirroring and stacking can save texture space, but they also repeat material details. This can become obvious when unique scratches, labels, dirt patterns, or asymmetric wear appear twice.

Overlaps can also create baking problems if the workflow is not configured correctly. Move duplicate islands outside the primary UV tile during baking when necessary, then return or stack them after the maps have been generated.

Plan Texture Sets and Materials Together

Avoid creating a separate material merely because two parts are separate objects. Parts can share a texture set when they need similar resolution and can be managed efficiently together.

At the same time, do not force every component into one texture if this produces inadequate density or prevents necessary material behavior. Transparent glass, animated displays, or specialized shaders may require separate materials.

The objective is a deliberate balance between visual quality, material flexibility, texture memory, and rendering cost.

How Do You Bake Clean Maps Without Projection Errors?

Baking transfers surface information from the detailed source to the optimized game mesh. It allows the low-poly asset to reproduce bevels, seams, engravings, dents, and other forms without carrying the full high-poly geometry into the engine.

The normal map is usually the most visually sensitive result, but supporting maps such as ambient occlusion, curvature, position, thickness, and world-space normals are also valuable. Substance 3D Painter uses these mesh maps to drive generators, masks, smart materials, and procedural effects.

Before baking, verify that the high-poly and low-poly occupy the same space, transforms are controlled, normals are correct, and the final low-poly triangulation is stable.

Prevent Projection Contamination

When several components are close together, one high-poly part can project onto the wrong low-poly surface. This often produces dark shapes, duplicated details, or unexplained artifacts.

In Substance 3D Painter, matching high-poly and low-poly parts by mesh name can isolate the projection. In Marmoset Toolbag, bake groups provide similar control while allowing you to adjust cages and projection distances for individual components.

Separate the workshop table into logical bake groups such as the tabletop, frame, drawers, handles, and lower shelf. You do not necessarily need to export every part as a permanent separate asset. The separation exists to make the bake controllable.

Check the Cage Instead of Guessing

A cage defines how rays project from the low-poly mesh toward the high-poly surface. If the cage is too tight, it may miss details. If it extends too far, it may capture neighboring geometry or project details at distorted angles.

Inspect problematic areas locally. Handles, narrow gaps, deep recesses, intersecting panels, and sharp corners often require more attention than broad exposed surfaces.

Marmoset Toolbag is especially useful when you need to paint skew corrections or adjust cage distances visually. Substance 3D Painter provides a convenient workflow when baking and texturing are performed in the same project.

Respect Hard Edges and UV Splits

A hard edge creates a discontinuity in the vertex normals. In many tangent-space workflows, that edge should also be supported by a UV split to give the normal map enough separation.

However, the correct setup depends on the mesh, smoothing strategy, baker, and engine tangent basis. Avoid applying a memorized rule without inspecting the actual result.

Evaluate the bake under strong rotating light, not only by looking at the normal map image. Watch for waviness, gradients, seams, skewed bolts, dark patches, and details that collapse at grazing angles.

For a focused troubleshooting guide, review these common normal map mistakes and how to avoid them.

A clean bake is not the final objective by itself. The real test is whether the low-poly asset shades correctly after import into the target engine.

Creating Efficient PBR Textures That Read In-Engine

PBR texturing describes materials through properties that respond consistently to real-time lighting. In a metallic-roughness workflow, the essential maps usually include base color, roughness, metallic, and normal information. Ambient occlusion may also be used depending on the engine and material setup.

Each map has a specific purpose. Base color describes surface color without strong baked lighting. Metallic identifies whether a surface behaves as a metal or non-metal. Roughness controls the width and intensity of reflected highlights. The normal map modifies the apparent surface direction without changing the silhouette.

If you need a complete explanation of how these maps work together, follow the PBR workflow step by step.

Build Material Identity Before Adding Damage

Begin with the undamaged materials. Make the wood read as wood and the metal read as metal before adding scratches, rust, dust, fingerprints, or edge wear.

Material identity comes from the relationship between color, reflectivity, roughness, surface relief, and scale. A generic brown base color with random noise will not automatically look like wood. Grain direction, finish, porosity, wear, and roughness behavior must support the construction of the object.

For the workshop table, the wood grain should follow the direction of the boards. Painted metal should show different roughness from exposed metal. Grease around a frequently handled drawer may be smoother than the surrounding dusty surface.

Treat Roughness as Structural Information

Roughness often contributes more to material recognition than dramatic color variation. It can distinguish polished wear from dry dust, raw wood from varnished wood, and clean paint from oxidized metal.

Avoid filling the roughness map with uniform procedural noise. Variation should have a plausible source. Consider where hands touch the asset, where water collects, which surfaces face upward, and which edges are exposed to abrasion.

Add Storytelling With Restraint

Wear should explain how the object was manufactured and used.

A drawer handle may show localized polishing. The front edge of a worktop may be chipped by repeated impacts. Dust may settle on horizontal surfaces but remain limited on frequently touched areas. Rust may form around exposed fasteners or damaged paint rather than appearing evenly across every edge.

Smart materials and generators can accelerate this process, but they should be treated as starting points. Adjust masks manually and remove effects that do not support the asset’s function.

Choose Texture Resolution From the Final View

A 4K texture is not automatically more professional than a 2K texture. Resolution should be based on screen coverage, texel density, platform, number of assets, and the amount of unique detail required.

Inspect the asset from its expected gameplay distance. Texture information that is visible only at extreme zoom may add memory cost without improving the player’s experience.

Export texture channels according to the target engine. Unity pipelines may use smoothness rather than roughness in a specific channel, while Unreal materials often combine ambient occlusion, roughness, and metallic data into a packed texture. Always verify the current material configuration rather than assuming that one preset works everywhere.

Finally, test the asset with more than one HDRI or lighting setup. A material that looks convincing only under a dramatic studio light is not yet reliable.

How Do You Optimize, Export, and Test the Asset?

Optimization is the process of allocating technical resources where they create visible or functional value. It is not a competition to produce the smallest mesh or texture set.

Start by inspecting the complete asset rather than geometry alone. Triangle count, vertex splits, material slots, texture memory, shader complexity, collision, shadows, transparency, and the number of visible instances all contribute to the real cost.

A workshop table with a moderate triangle count and one efficient material may be less expensive than a simpler-looking table divided across several materials and separate renderers.

Review the Asset at Gameplay Distance

Do not optimize only while orbiting the model in Blender at close range. Place it in a representative test scene and view it through the intended camera.

Look for geometry that no longer changes the silhouette, bevel segments that do not affect highlights, hidden faces that cannot become visible, and small components that disappear at normal distance.

Be careful with automatic reduction. A lower number does not guarantee a better mesh. Decimation can damage shading, UVs, long edges, curved silhouettes, and intentionally placed topology.

Add LODs Where They Provide Measurable Value

Levels of Detail replace an asset with progressively simpler versions as its screen size decreases. LODs can be valuable for detailed or repeated props, but they also require additional production, storage, setup, and testing.

Remove secondary details first. Small bolts, narrow bevels, grooves, internal components, and minor silhouette changes can often disappear before the main form is simplified.

Do not apply the same percentage reduction to every object. A rectangular table may tolerate aggressive simplification, while a circular handle may reveal faceting quickly. Test transitions in motion and through the real camera.

Not every simple prop requires several versions. This guide explains when to use LODs and when to skip them.

Create Collision for Gameplay, Not for Visual Accuracy

Collision should represent how the player, physics objects, projectiles, or navigation systems interact with the asset.

A workshop table may need simple boxes for the tabletop, legs, and lower shelf. It rarely needs a collision mesh that reproduces every screw, beveled edge, scratch, or small gap.

Simplified collision is usually faster and more stable. More detailed collision should be added only when the gameplay requires it, such as when objects must pass through openings or rest accurately on irregular surfaces.

Prepare the Export

Before exporting, verify scale, origin, pivot, transforms, normals, triangulation, material assignments, object names, and orientation.

The pivot should support the expected placement or interaction. For a floor-standing prop, positioning it at the base often makes placement easier. A door, drawer, wheel, or lever needs a pivot aligned with its intended movement.

Avoid unresolved negative scale, accidental transforms, unused materials, duplicate meshes, hidden construction objects, and unclear names. Export only the components required by the final asset.

FBX remains common for Unity and Unreal workflows, but its behavior can vary according to exporter settings, engine import options, animation requirements, and axis conversion. If an asset imports with unexpected rotation, scale, shading, or hierarchy, consult this guide to Blender FBX export problems for Unity and Unreal.

Validate the Asset Inside the Engine

The game engine is the final source of truth. An asset that works only inside Blender or Substance 3D Painter has not completed the pipeline.

In Unity or Unreal Engine, inspect scale, orientation, normals, tangents, texture color spaces, normal map settings, metallic and roughness behavior, collision, shadows, LOD transitions, and pivot placement.

Test the model under neutral and directional lighting. Rotate the light to expose shading problems. View the asset at realistic distances and place several copies in the scene if it is likely to be repeated.

Also verify that materials respond correctly to the selected rendering pipeline. A roughness map connected as smoothness, a normal map imported as a regular color texture, or an incorrectly packed channel can make a technically correct texture set appear broken.

Performance should be evaluated in a representative scene, not by judging one prop against an empty background. The cost of repeated instances, materials, shadows, collision, and surrounding systems is more relevant than the isolated triangle count.

Common Mistakes That Break an Otherwise Good Asset

Many pipeline failures are caused by decisions that looked harmless earlier in production.

Common mistake	Practical consequence	Better approach
Modeling before defining the asset’s role	Geometry and textures do not match the final use	Define platform, camera distance, repetition, and gameplay importance first
Adding detail before validating the blockout	Time is spent polishing incorrect proportions	Approve scale and silhouette before secondary forms
Treating the lowest polycount as the goal	Curves become faceted and shading becomes unstable	Remove geometry only when the visible result remains acceptable
Using too many material slots	More rendering overhead and a harder asset to manage	Combine compatible surfaces into intentional texture sets
Packing UVs without checking density	Some areas appear sharp while others look blurred	Use a checker map and prioritize visible surfaces
Ignoring final triangulation	Shading changes after baking or engine import	Keep triangulation consistent from bake to delivery
Applying generic edge wear everywhere	Materials look procedural and disconnected from use	Base wear on contact, construction, exposure, and material type
Testing only in the DCC application	Engine-specific scale, shading, or material issues remain hidden	Import and validate the asset throughout production
Using visual geometry as collision	Physics becomes unnecessarily complex	Build collision according to interaction requirements
Delivering undocumented files	Buyers cannot assess or integrate the asset quickly	Provide clear technical specifications and organized folders

These problems are easier to prevent than to repair after the final texture set has been completed.

Final Game Asset Pipeline Checklist

Use this checklist before publishing, delivering, or integrating the asset.

Planning and Geometry

• The asset has a defined role, target platform, and expected camera distance.
• Real-world scale and proportions have been verified.
• The silhouette reads correctly from relevant views.
• Geometry is concentrated where it creates visible or functional value.
• Hidden, duplicate, and unnecessary internal faces have been removed.
• Curved surfaces do not show distracting faceting.
• Flat surfaces shade without unexpected gradients.
• Final triangulation is controlled where it affects the bake.
• Object names, origins, pivots, and transforms are intentional.

UVs, Baking, and Textures

• UV islands have suitable texel density and padding.
• Visible surfaces receive appropriate texture space.
• Overlapping or mirrored UVs are intentional.
• The bake has been inspected under moving directional light.
• Normal maps do not contain visible seams, skewing, or projection errors.
• Base color is not dependent on strongly baked lighting.
• Metallic values match the actual material type.
• Roughness variation has a physical or narrative reason.
• Texture resolution matches the asset’s screen usage.
• Export presets and packed channels match the target engine.

Optimization and Engine Integration

• Material slots are limited to those that provide a real benefit.
• LODs are included only when they improve the intended use case.
• LOD transitions have been tested through the gameplay camera.
• Collision is appropriate for the expected interaction.
• Scale, orientation, shading, and materials have been verified in-engine.
• The asset has been tested under different real-time lighting conditions.
• Repeated instances have been tested when repetition is part of the intended use.

Delivery and Marketplace Preparation

• Source and exchange files are clearly organized.
• Texture folders and filenames are understandable.
• Triangle and vertex counts are documented.
• Texture resolutions, map types, and material workflows are listed.
• LOD and collision information is included.
• Supported engines and rendering pipelines are stated accurately.
• Preview images show the asset, wireframe, materials, and important technical features.
• A buyer can identify what is included without making assumptions.

A professional marketplace package should reduce uncertainty. Do not rely only on attractive renders. Show the wireframe, texture maps, material response, scale, LODs, and collision when those details affect the product’s value.

3DSkillUp Insight: Validate Earlier Than Feels Necessary

One of the most effective pipeline improvements is to export sooner.

Do not wait until the model is fully textured before opening Unity or Unreal Engine. Export the blockout to verify scale and orientation. Export the low-poly mesh before baking to inspect pivots, normals, and material divisions. Import a preliminary texture set before final polishing to confirm that the material channels behave correctly.

These small tests prevent technical assumptions from surviving until the most expensive stage of production.

A good game asset pipeline is therefore not a perfectly straight line. It is a controlled loop:

Plan → Build → Test → Correct → Continue

Your final asset should preserve the details players can see, simplify what they cannot, respond consistently to real-time lighting, and integrate without unnecessary repair.

If you intend to sell the model, technical clarity is part of the product. Clean files, accurate documentation, useful previews, and predictable engine behavior can be just as important to the buyer as the quality of the final render.

Explore more 3DSkillUp tutorials, game-ready assets, PBR resources, and practical workflow guides to make your next asset easier to build, test, and deliver.
