Texture Atlas for 3D Assets: When Is It Really Worth It?

A texture atlas is often presented as a simple optimization technique: combine several textures into one image, reduce draw calls, and improve performance.

That explanation is not wrong, but it is incomplete.

A well-planned texture atlas can help multiple 3D assets share the same material, simplify a real-time scene, and reduce unnecessary rendering state changes. A poorly planned atlas can lower texture quality, waste memory, create mipmap bleeding, complicate revisions, and force unrelated assets into the same production pipeline.

The real question is therefore not whether texture atlases are good or bad. The useful question is:

Does this specific group of assets gain more from sharing a texture than it loses in resolution, flexibility, and streaming efficiency?

In this guide, you will learn when a texture atlas is genuinely useful, when separate texture sets are the better option, and how to build a reliable workflow across Blender, Substance 3D Painter, Marmoset Toolbag, Unity, and Unreal Engine.

What Is a Texture Atlas in a 3D Workflow?

A texture atlas is a large texture image containing visual information for several objects or several parts of the same object. Each mesh uses its UV coordinates to sample only the region assigned to it.

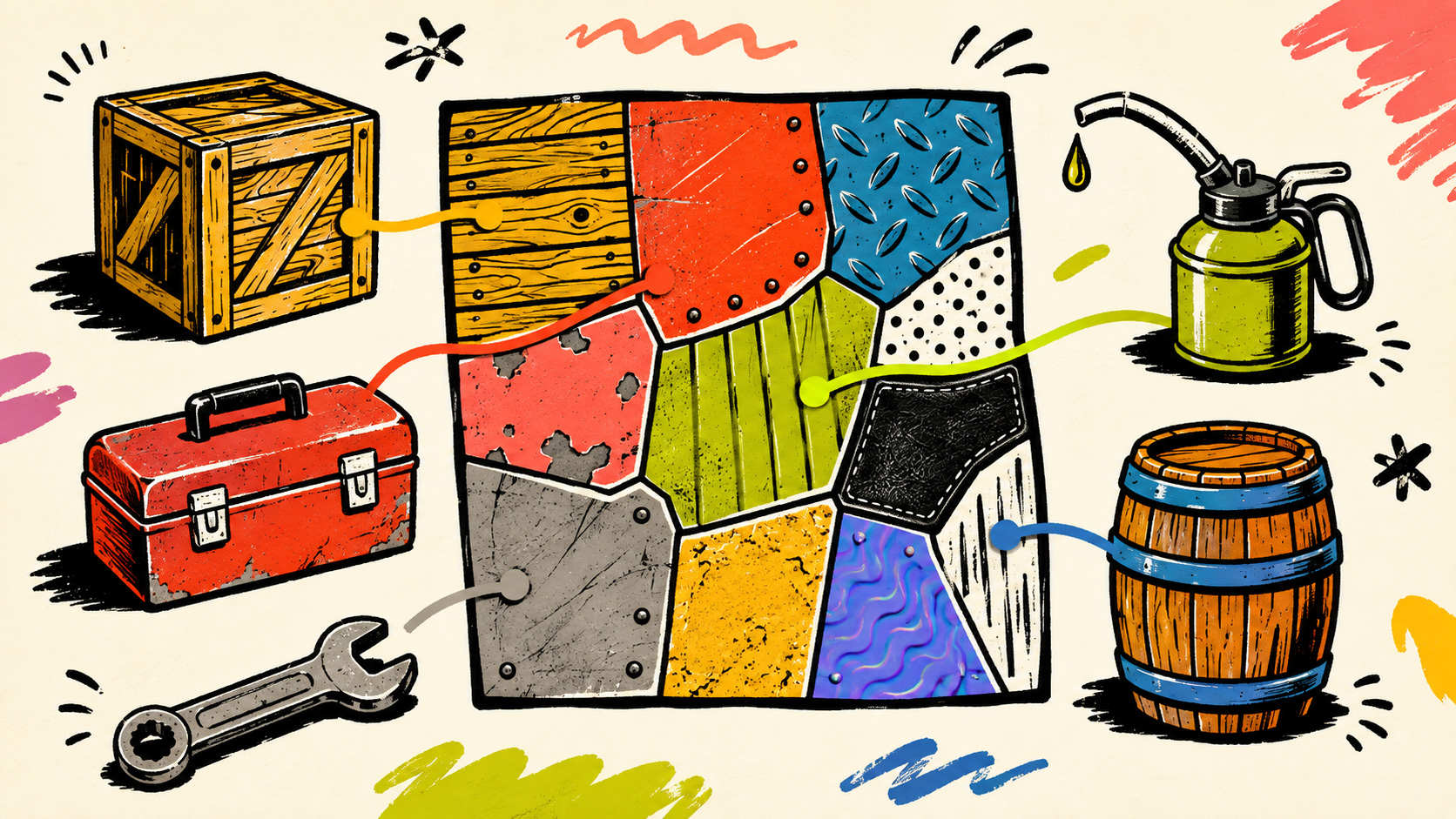

Imagine a workshop environment containing a wrench, hammer, oil can, toolbox, mug, paint bucket, and several small containers. Instead of giving every prop its own material and texture set, you could unwrap all of them into different areas of one shared UV layout.

The assets could then use one shared material.

In a PBR workflow, an atlas is rarely a single image. You normally create a matching group of atlas maps:

• Base Color
• Normal
• Roughness
• Metallic
• Ambient Occlusion or a packed mask map, when required

Every map must use the same layout. If the hammer occupies the upper-left region of the Base Color atlas, its normal, roughness, and metallic information must occupy that exact region in the corresponding maps.

This is different from channel packing. Channel packing places different grayscale data maps into the red, green, blue, or alpha channels of one image. Texture atlasing places different spatial regions into one image. The two techniques solve different problems, although they can be used together.

The meshes do not need to be joined into one object. Separate props can remain independently selectable, positioned, culled, animated, or instanced while still sampling the same atlas through one shared material.

Why Can a Texture Atlas Reduce Draw Calls?

A draw call is an instruction asking the graphics system to render geometry with a particular mesh, shader, material, texture set, and render state.

If you want a more complete introduction to this relationship, read the 3DSkillUp guide to draw calls and how they affect 3D assets.

When objects use different materials, the engine may need to change textures, shader parameters, or other render settings between them. These state changes can create additional CPU work and prevent the engine from grouping compatible objects efficiently.

An atlas can help because it allows several assets to reference the same textures through the same material. Unity’s current draw-call optimization documentation describes this process in terms of grouping meshes and data that use compatible render states.

However, sharing an atlas does not automatically mean that an entire group of objects will be rendered in one draw call.

The final result also depends on factors such as:

• the rendering pipeline;
• batching and instancing rules;
• shader variants;
• material parameters;
• transparency;
• lighting and shadow passes;
• mesh organization;
• engine configuration.

A texture atlas should therefore be understood as an enabling condition. It can make material sharing and batching possible, but it cannot guarantee the final number of draw calls by itself.

Consider a scene containing twenty small workshop props. If every prop uses its own unique material, the engine must manage twenty different material setups. If all twenty props use one compatible atlas material, the engine has a better opportunity to reduce state changes or group rendering work.

Even if the final result is not one draw call, reducing unnecessary material variation may still make the scene cleaner and easier to optimize.

When Is a Texture Atlas Really Worth Using?

Texture atlases are strongest when the assets share a practical relationship inside the final scene.

Related props commonly visible together

Small and medium props are often strong atlas candidates because several of them may appear within the camera view at the same time.

A medieval market scene might contain baskets, stools, bottles, plates, wooden signs, sacks, and simple tools. A workshop could contain cans, containers, bolts, hammers, screwdrivers, paint buckets, and machine accessories.

If these objects share similar material behavior and frequently appear together, a shared atlas can be more useful than separate texture sets.

Assets using the same shader type

Atlasing works best when objects can use the same material and shader.

Opaque workshop props can often share one material even if their surfaces visually represent wood, painted metal, rubber, plastic, or worn steel. Those differences can be stored in the Base Color, Roughness, Metallic, Normal, and mask maps.

Transparent glass, foliage, animated emissive displays, two-sided fabric, and surfaces requiring specialized shaders may need separate materials. Placing their colors in the same atlas does not remove those rendering differences.

Assets with similar texel-density requirements

An atlas works more predictably when its assets need approximately similar texture detail.

A hammer, wrench, small toolbox, and metal can may all be viewed from a comparable distance. Sharing an atlas between them can preserve reasonable consistency.

A first-person weapon and a tiny background screw have very different visual priorities. Giving them equal atlas space would waste pixels on the screw, while reducing the space available to the weapon would damage close-up quality.

Stable asset groups

An atlas is easier to maintain when the collection is mostly complete before texturing begins.

If assets are constantly added, removed, resized, or redesigned, the UV layout may need repeated changes. Because the atlas connects several objects, changing one object can affect the texture space available to all the others.

Atlases are therefore especially useful for defined production groups: a completed prop collection, a modular kit, a mobile environment set, a stylized scene, or a controlled group of background assets.

When Should You Avoid a Texture Atlas?

A texture atlas is not automatically the professional choice. In several situations, individual texture sets offer better results.

Hero assets and close-up objects

A hero weapon, vehicle, detailed character, complex machine, or cinematic prop may need most of a 2K or 4K texture for itself. Adding unrelated objects to that texture provides little benefit and may reduce the available detail.

A dedicated texture set also gives the artist greater freedom to update the hero asset without disturbing other models.

Assets with very different screen importance

Suppose a furniture pack contains a large sofa, a wardrobe, several lamps, books, cups, and tiny decorative objects. These assets do not need equal resolution.

Forcing them into one atlas can make pixel allocation difficult. The sofa and wardrobe may need much more texture space, while the smaller props may occupy only a tiny region and become unnecessarily dependent on a large texture.

Before deciding on an atlas size, it is worth reviewing how camera distance, asset dimensions, and UV efficiency affect texture resolution for 3D assets.

Objects rarely loaded or displayed together

Texture atlases are most logical when their contents share a usage pattern.

In a conventional mip-based streaming system, the engine loads texture resources at the mip levels it considers necessary. If one visible object requires a higher-resolution mip from a large atlas, unrelated regions stored in that same texture become part of the resident resource as well.

This can reduce streaming granularity. A level containing one small prop may not benefit from loading parts of an atlas reserved for objects located elsewhere in the game.

Assets requiring different shaders

Combining image content does not make incompatible materials compatible.

Opaque metal, transparent glass, masked foliage, animated screens, subsurface skin, and emissive signs may require different shaders, passes, or rendering settings. If the engine must still render them separately, the atlas may not produce the expected material or draw-call reduction.

Products designed for customization

Marketplace buyers may want to recolor, replace, or modify individual assets. Separate textures make this easier because one file clearly belongs to one object.

With a shared atlas, replacing the texture of one prop may require editing a larger image containing several unrelated assets. This is not necessarily a problem, but it should be considered when deciding whether optimization or customization is the greater priority.

Texture Atlas vs Trim Sheet, UDIM, and Channel Packing

Texture atlases are only one method of organizing texture data. They are often confused with trim sheets, UDIMs, and packed masks, but each technique has a different primary purpose.

A texture atlas and channel packing can be used together. For example, a prop pack might use one Base Color atlas, one Normal atlas, and one packed mask atlas containing roughness, metallic, and ambient occlusion data in separate channels.

The correct channel arrangement depends on the target shader and engine. If you need a broader explanation of how these maps interact, the PBR workflow explained step by step provides the necessary foundation.

A trim sheet is also related to atlasing, but its UV logic is different. An atlas normally gives each asset or component a unique region. A trim sheet encourages many objects to reuse the same strips, edges, panels, or surface details.

For a modular industrial building, a trim sheet may be more efficient than giving each wall and beam a unique atlas region. For a group of small props with unique labels, dirt patterns, and baked normals, a texture atlas may be more appropriate.

How Do You Build a Reliable Texture Atlas Workflow?

The most important atlas decisions should happen before final texturing. Repacking completed assets at the end of production often creates unnecessary rebaking, repainting, and troubleshooting.

Define the usage group

Begin by identifying which objects are likely to appear together, use the same shader, and require similar detail.

Do not create a single atlas simply because all the assets belong to the same marketplace product. A pack can contain several practical atlas groups.

A workshop collection, for example, might use:

• one atlas for small opaque hand tools;
• one atlas for medium containers and equipment;
• a dedicated material for transparent bottles;
• a separate texture set for a large hero machine.

This arrangement is slightly more complex than one enormous atlas, but it better reflects how the assets will actually be used.

Establish a texture budget

Choose the atlas resolution according to the target platform, expected camera distance, and required texel density.

Four square 1K textures contain approximately the same total pixel count as one 2K texture before accounting for packing inefficiency and padding. This means four small assets can theoretically retain similar pixel coverage inside a well-organized 2K atlas.

The result is not automatically equivalent. UV island shapes, empty space, margins, rotations, and differences in object importance all affect usable resolution.

Test the atlas at the intended gameplay distance. If small labels, edges, or surface details become unreadable, either increase the atlas size, allocate more UV space to important areas, or separate the most demanding object.

Prepare the UV layout in Blender

Apply object scale before evaluating texel density. Unwrap each asset cleanly, correct visible stretching, and normalize the relative scale of the UV islands according to their visual importance.

All unique atlas islands must fit within the 0–1 UV space without unintended overlaps. Deliberate overlap can still be useful for identical mirrored or repeated parts, but it should be planned rather than accidental.

Blender’s Pack Islands tool can arrange UV islands efficiently while preserving a defined margin. Automatic packing is a useful starting point, but the final layout should still be inspected manually.

Give more space to visible and important surfaces. Hidden undersides, small connectors, and rarely viewed areas can often use fewer pixels. Do not waste half of the atlas on a surface that occupies only a few pixels on screen.

Save a version of the file before committing to the shared layout. Once painting and baking begin, large UV changes become expensive.

Bake into the shared atlas

The low-poly assets must reference the correct regions of the same target images. If Blender is used for baking, create the destination atlas images in advance and ensure the relevant materials point to the correct Image Texture nodes.

Padding is essential. During mipmap generation, the texture is progressively reduced in resolution. Without enough dilation around each UV island, colors or normal information from neighboring areas can bleed into the visible surface.

If you encounter inconsistent targets, black textures, projection artifacts, or unexplained seams, this guide to why baking in Blender fails covers the most common setup errors.

Organize the project in Substance 3D Painter

Substance 3D Painter generally creates texture sets from material assignments in the imported mesh. If the objective is one shared atlas, the low-poly objects should normally use one atlas material assignment rather than separate final materials for every prop.

Material IDs or a baked ID map can still be used to distinguish wood, metal, rubber, paint, plastic, and other surface zones while texturing. These IDs help create masks without forcing every surface type into a separate exported texture set.

Lock the UV layout before detailed painting. Smart masks, generators, hand-painted details, and baked mesh maps depend on the relationship between the mesh and its UVs. Repacking the atlas after texturing can invalidate that work.

When exporting, confirm that every PBR atlas uses the same dimensions, orientation, naming convention, and spatial layout.

Validate padding and baking in Marmoset Toolbag

Marmoset Toolbag Bake Groups can isolate high-poly and low-poly elements, reducing unwanted projection between nearby objects. This is useful when several props share one atlas but still need independent cages or projection control.

Marmoset’s official baking documentation notes that padding extends baked content beyond UV borders to help prevent mipmapping problems.

Inspect the atlas at full resolution, then test smaller mip levels or downscaled exports. A bake can look perfect at 4K and still reveal bleeding when displayed at 512 or 256 pixels.

How Should You Test a Texture Atlas in Unity and Unreal Engine?

The atlas is not finished when the images have been exported. It is finished when it behaves correctly in the target engine.

Testing in Unity

Import the meshes and assign one shared material using the atlas maps. Base Color textures should normally use color-space handling appropriate for color data, while normal maps and scalar data such as roughness, metallic, and masks must be interpreted according to the shader’s requirements.

Check the maximum texture size, compression, mipmap generation, filtering, normal-map classification, and platform overrides. Incorrect import settings can invalidate an otherwise clean atlas.

Use Unity’s Frame Debugger or relevant profiling tools to compare the scene before and after atlasing. Do not judge success by counting material files in the Project window.

Measure what the engine actually renders.

Testing in Unreal Engine

Assign the intended shared material and verify every material slot on the imported meshes. Check Base Color, normal-map compression, sRGB settings, packed masks, mipmaps, and streaming behavior.

A large atlas can be efficient when many of its assets appear together. It can be less efficient when only one small object is visible but the project must maintain a higher-resolution mip of a texture containing many unrelated assets.

Unreal’s texture-streaming overview explains how the engine calculates and manages required mip levels. This makes engine testing particularly important when atlases contain assets used at very different scales or locations.

Compare more than draw calls

A useful before-and-after test should examine:

• draw calls and render-state changes;
• CPU and GPU frame time;
• texture memory;
• loading or streaming behavior;
• visual quality at gameplay distance;
• material and asset-management complexity.

An atlas that removes several material changes but causes unacceptable texture blurring is not a successful optimization. An atlas that keeps the same visual quality, simplifies the material setup, and performs better in the target scene is much easier to justify.

Texture atlasing should always be evaluated as part of the broader process of optimizing 3D models for games, not as an isolated technique.

Common Texture Atlas Mistakes

Atlasing without identifying a real problem

Some artists rebuild every texture into an atlas because atlases are associated with optimization.

This can add several hours of UV, baking, and texture work without producing a meaningful performance improvement. Profile the representative scene first. If draw calls, materials, or render-state changes are not a relevant bottleneck, the production cost may not be justified.

Combining too many unrelated assets

One enormous atlas for an entire project may sound efficient, but it creates strong dependencies between objects that may never appear together.

Organize atlases by scene, usage group, asset scale, shader type, or loading context. A small number of purposeful atlases is usually easier to maintain than one global texture containing everything.

Using insufficient padding

Small margins may look acceptable at the source resolution but fail once mipmaps become active. Color, roughness, or normal information from neighboring regions can bleed across UV borders.

Padding should be planned according to atlas resolution and expected mip usage. A fixed margin that works for one output size may not remain sufficient after aggressive downscaling.

Ignoring texel density

Efficient packing is not simply filling every empty pixel. UV islands also need sensible relative scale.

If a small bolt receives more pixels per centimeter than a large toolbox panel, the atlas may be full but visually inconsistent. Prioritize objects and surfaces according to camera distance, screen coverage, and visual importance.

Confusing fewer files with lower memory use

Four 1K images and one 2K image contain roughly the same total number of pixels before compression and packing differences. Combining them does not automatically reduce texture memory.

The main advantage may instead come from material sharing, fewer texture bindings, improved batching opportunities, or cleaner asset organization.

Combining incompatible material behavior

Painted metal, wood, and rubber can often share one opaque PBR material because their differences are represented through textures.

Transparent glass, masked foliage, emissive animation, subsurface materials, or special effects may require different shader behavior. Placing them inside one image does not make them part of one compatible render state.

Changing UVs after baking and texturing

An atlas creates a strict relationship between several meshes and several maps. If one UV region changes, its Base Color, Normal, Roughness, Metallic, AO, and mask data may all need to be updated.

Treat the final atlas layout as a production milestone. Once detailed texturing starts, modify it only when the benefit clearly outweighs the rework.

3DSkillUp Insight: Build Atlases Around Use, Not Categories

A professional atlas should reflect how assets behave inside a scene.

Imagine a store product containing thirty workshop assets. It may be tempting to place all thirty objects into one large atlas because they belong to the same commercial pack. But the buyer may use the hand tools around a workbench, place the storage containers in another room, and use the large machine only once.

A more practical structure could use one atlas for frequently repeated workbench props, another for medium storage items, and a dedicated texture set for the hero machine. Transparent or specialized materials can remain separate.

This preserves the benefits of material sharing without creating one rigid texture dependency across the entire collection.

Before committing to a texture atlas, ask:

• Will these assets frequently appear in the same camera view?
• Can they use the same shader and render state?
• Do they require similar texel density?
• Can they fit into the planned resolution without visible quality loss?
• Is material count or draw-call overhead an actual concern?
• Will the atlas make texture streaming less efficient?
• Are the assets stable enough to lock their UV layouts?
• Will buyers need to customize individual objects?
• Have you compared the result inside the target engine?

If most answers support shared use, an atlas is probably worth testing. If several answers reveal conflicting requirements, separate texture sets or multiple smaller atlases are likely safer.

For marketplace delivery, clearly document the atlas resolution, included maps, material count, color-space expectations, normal-map convention, UV organization, and engine compatibility. This technical clarity is part of making a 3D model genuinely game-ready.

Conclusion: Use a Texture Atlas When the Whole System Benefits

A texture atlas is worth using when related assets are commonly rendered together, can share the same material, require compatible texture detail, and produce a measurable improvement in the final scene.

It is less useful when assets have very different resolutions, shaders, loading patterns, or customization requirements. In those situations, an atlas can exchange a small rendering advantage for lower visual quality, more difficult editing, or less efficient streaming.

The best workflow is not to atlas everything. It is to identify meaningful asset groups, plan their texture budget, build clean UVs, maintain sufficient padding, export consistent PBR maps, and verify the result inside Unity or Unreal Engine.

Use atlases as a targeted production tool, not as an automatic rule.

When the atlas improves visual consistency, material sharing, real-time performance, and buyer usability at the same time, it is doing exactly what a professional optimization technique should do.
